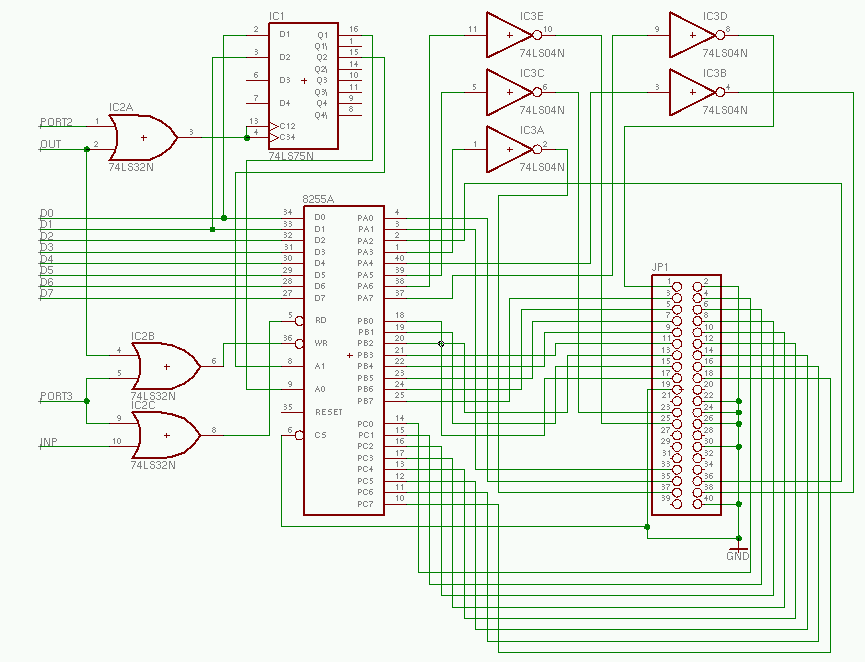

This circuit is utilized by selecting an 8255 port by writing port2 and then reading/writing the selected 8255 port on port 3. PB of the 8255 provides the low 8 bits to the IDE device, while PC provides the high 8 bits.

PA provides the control signals for the IDE bus as follows:

Bit	Function
0	IDE Bus A0
1	IDE Bus A1
2	IDE Bus A2
3	IDE Bus CS0 (inverted)
4	IDE Bus CS1 (inverted)
5	IDE Bus WR (inverted)
6	IDE Bus RD (inverted)
7	IDE Bus Reset (inverted)

The reason for the inversions are because the 8255 will bring bits to 0 during mode changes.

See the Port Extender schematic to see how Port2, Port3, Inp, and Out are derived

Note: This circuit is a work in progress and has not been tested in either real hardware or simulation
